| MODEL | AVT553 |
|---|---|
| Pick-up Element | 1/2.8" SONY CMOS image sensor |
| Number of Pixels | 1936(H) × 1096(V) |
| Video Frame Rate | 1080P@30fps / 1080P@25fps |
| Min. Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Lens Angle | Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal) Tele: 31° (Horizontal) / 17° (Vertical) / 36° (Diagonal) |
| IR LED | 2 units |
| IR Effective Distance | Default mode: up to 20 meters IR enhanced mode: up to 30 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| IRIS Mode | AES |
| White Balance | ATW |
| Sharpness | Adjustable |
| AGC | Auto |
| WDR | YES (120dB) |
| External alarm I/O | YES (1 input / 1 output) |
| IP Rating | IP66 |
| Operating Temperature | -20℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 1A |
| Optional Peripherals | Ceiling-mount bracket (AVM552C-BBKT) / Connector (BULLETCON1) |
| Net Weight (kg) | 1 |
01516733439

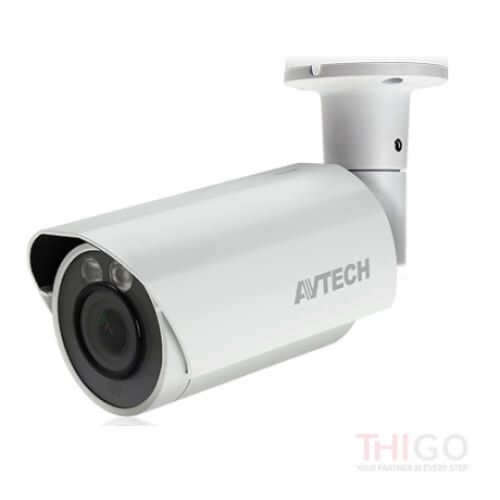

1 Review For AVTECH AVT553 2MP HD Bullet Verifocal Lens Camera
Verifocal Lens Camera for Optical ZOOM
