| ▼ Video |
| Video System |
NTSC / PAL (auto detection) |
| Video Compression Format |
H.264 |
| Video Signal |
IP / TVI / CVI / Analog HD / 960H |
| Video Input |
8 quadbrid channels (IP / TVI / Analog HD / 960H) + 1 IP channel |
| Video Input Interface |
| Analog Mode |
Composite video signal 1 Vp-p 75Ω BNC |
| IP Mode |
Ethernet, 10/100 Base-T |
|
| Video Output |
| BNC |
YES (Spot Monitor supported) |
| VGA |
YES (up to 1080P resolution / Spot Monitor supported) |
| HDMI |
YES (4K2K display) |
|
| Video Resolution |
| Analog Mode |
1080P / 720P / QHD / 960H / Frame / Field / CIF |
| IP Mode |
2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
|
| ▼ Record & Backup |
| Max. Recording Rate |
| Analog Mode |
Up to 240 IPS @ 1920 x 1080 (8 channels) |
| IP Mode |
UP to 270 IPS @ 1920 x 1080 (9 channels) |
|
| Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
| Pre-alarm Recording |
YES |
| Playback Channel |
9CH |
| Quick Search |
Time / Motion / Alarm search mode |
| Backup Device |
USB 2.0 drive / Network |
| Regular Backup |
YES |
| ▼ Audio |
| Audio Input |
4 audio inputs |
| Audio Output |
1 Audio output (Mono) |
| ▼ General |
| Hard Disk Storage |
Hard Disk Storage |
| SATA Interface |
YES |
| eSATA Interface |
YES (For external disk array connection) |
| Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
| USB Mouse Control |
YES |
| Motion Detection Area |
16 x 12 grids per channel |
| Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
| Event Notification |
Push Video / Push Status / FTP / E-Mail |
| Picture Zoom |
2X digital zoom |
| PTZ Support |
YES |
| Alarm I/O |
8 inputs, 1 output |
| RS485 |
YES |
| IR Remote Control |
YES (IR receiver built-in) |
| Key Lock (Password Protection) |
YES |
| User Level |
4 user levels for different access privilege |
| Video Loss Detection |
YES |
| Camera Title |
Supports up to 25 letters |
| Video Adjustable |
Hue / Saturation / Contrast / Brightness |
| Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
| Daylight Saving |
YES |
| Power Source (±10%) |
19V / 3.42A |
| Operating Temperature |
10ºC ~ 40ºC (50ºF ~104ºF) |
| Operating Humidity |
10% ~ 85% |
| Dimensions (mm)*** |
430(W) x 65(H) x 338(D) |
| Net Weight (kg) |
3.2 |
| ▼ Network |
| Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
| Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
| ▼ Remote Surveillance from PC |
| Compatible Operating System |
Windows & MAC |
| Compatible Program |
| Web Browser: |
Windows Edge, Google Chrome, Mozilla Firefox & Opera on
Windows 10 (and later versions) and Google Chrome & Mozilla
Firefox on MAC
|
| PC program: |
32CH CMS software for Windows OS |
| QuickTime: |
For both Windows and MAC operating systems |
|
| Max. online users |
20 |
| Web Transmitting Compression Format |
H.264 |
| Network Live Audio |
YES |
| Remote Independent Operation |
YES |
| Remote Event Download & Playback |
YES |
| ▼ Mobile Surveillance |
| App |
EagleEyes |
| Compatible Devices |
iOS & Android devices |
| Push Video |
YES (4 channels) |
| Push Status |
YES |
| ▼ Others |
| EaZy Networking |
YES |
| IVA |
YES (4 channels in analog mode) |
| DCCS Support |
YES |
| AVTECH Free DDNS service |
YES |
| Privacy Mask |
YES |
| Multiplex Operation |
Live display / record / playback / backup / network operations |
| System Recovery |
System auto recovery after power failure |
| Optional Peripherals |
Disk Array (AVX997 / AVX992) / HDMI Matrix
(HDM02) / USB Joystick (AVX102)
|

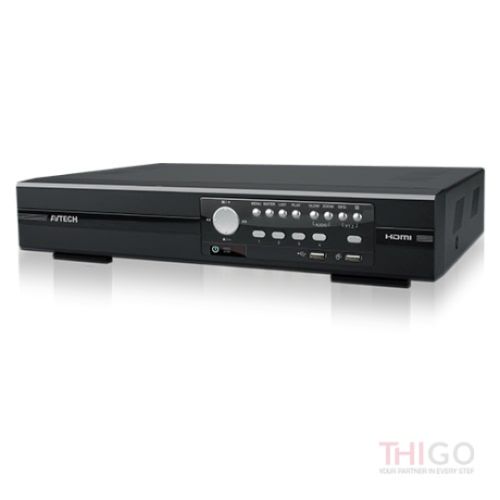

1 Review For AVTECH AVZ408 8 Channel H.264 Pentabrid DVR
