| ▼ Video |
| Video System |
NTSC / PAL (auto detection) |
| Video Compression Format |
H.265 |
| Video Signal |
IP / TVI / CVI / Analog HD / 960H |
| Video Input |
8 channels (Composite video signal 1 Vp-p 75Ω BNC) |
| Video Output |
| BNC |
YES |
| VGA* |
YES |
| HDMI |
YES |
|
| Video Resolution |
1080P / 720P / QHD / 960H / Frame / Field / CIF |
| ▼ Record & Backup |
| Max. Recording Rate |
Up to 120 IPS @ 1920 x 1080 Up to 240 IPS @ 1280 x 720 |
| Recording Mode |
Manual / Timer / Motion / Alarm / Remote |
| Pre-alarm Recording |
YES |
| Playback Channel |
8 Channel |
| Quick Search |
Time / Motion / Alarm search mode |
| Backup Device |
USB 2.0 drive / Network |
| Regular Backup |
YES |
| ▼ Audio |
| Audio Input |
1 audio input |
| Audio Output |
1 audio output (Mono) |
| ▼ General |
| Hard Disk Storage |
10TB SATA HDD x 2e |
| SATA Interface |
YES |
| eSATA Interface |
Expandable with a SATA to eSATA cable |
| Image Quality Setting |
SUPER BEST / BEST / HIGH / NORMAL |
| USB Mouse Control |
YES |
| Motion Detection Area |
16 x 12 grids per channel |
| Motion Detection Sensitivity |
3 adjustable parameters for accurate detection |
| Event Notification |
Push Status / FTP / E-Mail |
| Picture Zoom |
2X digital zoom |
| PTZ Support |
YES |
| Alarm I/O |
4 inputs |
| IR Remote Control |
YES (IR receiver built-in) |
| Key Lock (Password Protection) |
YES |
| User Level |
4 user levels for different access privilege |
| Video Loss Detection |
YES |
| Camera Title |
Supports up to 25 letters |
| Video Adjustable |
Hue / Saturation / Contrast / Brightness |
| Date Display Format |
YY/MM/DD, DD/MM/YY & MM/DD/YY |
| Daylight Saving |
YES |
| Power Source (±10%) |
DC12V / 3A |
| Operating Temperature |
10ºC ~ 40ºC (50ºF ~104ºF) |
| Operating Humidity |
10% ~ 85% |
| Dimensions (mm)*** |
345(W) x 68.3(H) x 225(D) |
| Net Weight (kg) |
2.2 |
| ▼ Network |
| Ethernet |
10/100 Base-T. Supports remote control and live view via Ethernet |
| Network Protocol |
TCP/IP, PPPOE, DHCP and DDNS |
| ▼ Remote Surveillance from PC |
| Compatible Operating System |
Windows & MAC |
| Compatible Program |
| Web Browser: |
Internet Explorer, Google Chrome & Safari |
| CMS Lite: |
32CH central management software for Windows OS |
| QuickTime: |
For both Windows and MAC operating systems |
|
| Max. online users |
20 |
| Web Transmitting Compression Format |
H.264 |
| Network Live Audio |
YES |
| Remote Independent Operation |
YES |
| Remote Event Download & Playback |
YES |
| ▼ Mobile Surveillance |
| App |
EagleEyes |
| Compatible Devices |
iOS & Android devices |
| Push Status |
YES |
| ▼ Others |
| EaZy Networking |
YES |
| DCCS Support |
YES |
| AVTECH Free DDNS service |
YES |
| Privacy Mask |
YES |
| Multiplex Operation |
Live display / record / playback / backup / network operations |
| System Recovery |
System auto recovery after power failure |
| Optional Peripherals |
HDMI Matrix (HDM02) / USB Joystick (AVX102) |

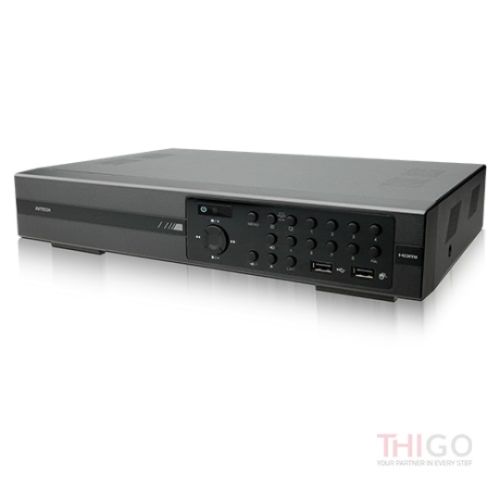

1 Review For AVTECH DGD1308 8 Channel Quadbrid H.265 DVR
