AVTECH DGM5203GCAT Datasheet and Specifications
| Device | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2592 x 1944 |
| Lens | f2.8 mm/F1.6 |
| Viewing Angle | 107° (Diagonal) |
| Min Illumination | 0.01 Lux (IR LED off), 0 Lux (IR LED on) |
| Shutter Speed | AUTO |
| IR LED | 18 units |
| IR Effective Distance | Up to 30 meters |
| Day / Night | YES |
| WDR Mode | DWDR |
| RTC (real-time clock) | YES |
| Video | |
| Compression | H.265 / H.264 |
| Video Resolution | Main Stream: 5MP (2592x1944) / 4MP (2680x1520) / 3MP (2304x1296) / 2MP (1080P) / 720P Sub Stream: D1 / VGA / 640x360 / 480x360 / CIF |
| Frame Rate | 5MP @ 25FPS |
| Video Profile | High profile / Main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 32Kbps - 8Mbps, VBR/CBR |
| Image Enhancement | DWDR / HLC / 2D DNR / 3D DNR / AWB |
| Day/Night Switch | Auto / Color / (B/W) / Timing |
| Forced Anti-flicker | YES |
| White Balance | Auto / Manual |
| Image Orientation | Flip / Mirror |
| Privacy Mask | YES |
| Text Overlay | YES |
| OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | YES |
| Encoding | G.711-u / G.711-a |
| Audio Adjustment | YES |
| Alarm & Event | |
| Detection Mode | Motion / Human Detection |
| Detection Schedule | YES |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption (±10%) | < 8 W |
| Net Weight (g) | 274.5 |
| Casing | IP66 |
| Optional Bracket / Junction Box | AVA126-WHKT / AVM552C-HBKT / AVM552C-HLKT |
| Minimum Web Browsing Requirements | |
| • Intel core i3 or higher, or equivalent AMD • 2GB RAM • AGP graphics card, Direct Draw, 32MB RAM • Windows 10, Windows 8, Windows 7, DirectX 9.0 or later • Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
|

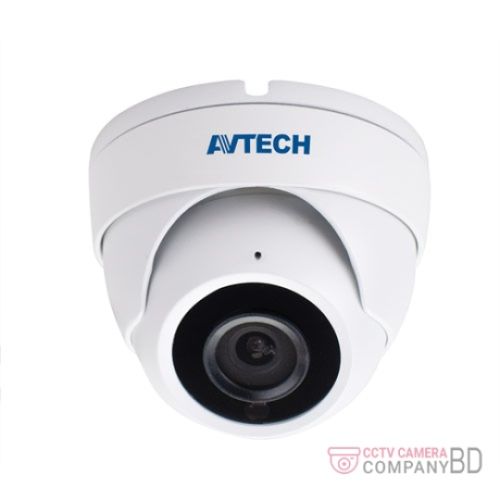

Avtech DGM5203GCAT AI-Based 5MP Dome IP Camera
The Avtech DGM5203GCAT is a premium AI-powered 5MP Dome IP Camera, offering superior video clarity and cutting-edge security features. Designed for versatile indoor and outdoor use, this camera combines AI-based human detection, IR night vision up to 30 meters, and DWDR technology for reliable and precise surveillance. Proudly 100% made in Taiwan, it ensures unmatched quality and durability, backed by a 2-year official warranty for your peace of mind.
Key Features
- 5MP Resolution: Captures ultra-clear high-definition video, providing sharp details for effective monitoring.
- AI-Based Human Detection: Reduces false alarms by accurately identifying human presence, enabling smarter surveillance.
- H.265 Video Compression: Optimizes storage and bandwidth usage without compromising video quality, making it cost-efficient for long-term use.
- IR Night Vision (Up to 30 Meters): Ensures uninterrupted black-and-white surveillance in complete darkness for 24/7 security.
- Digital Wide Dynamic Range (DWDR): Enhances image visibility in both overexposed and dark areas, ensuring balanced footage.
- Power-over-Ethernet (PoE): Simplifies installation by combining power and data into a single cable, reducing wiring complexity and costs.
- Built-In Microphone: Enables high-quality audio recording for added situational awareness and security.
- ONVIF Standard Support: Ensures compatibility with ONVIF-compliant devices, allowing seamless integration into existing surveillance systems.
-
Remote Surveillance:
- Fully compatible with Internet Explorer 6 and above, Microsoft Edge, and Google Chrome.
- Offers real-time monitoring from anywhere using supported devices.
Benefits
- Exceptional 5MP Video Quality: Provides detailed and crisp video footage for comprehensive monitoring.
- Accurate AI Detection: Minimizes unnecessary alerts, ensuring efficient and focused surveillance.
- Storage Optimization: Advanced H.265 video compression significantly reduces storage and bandwidth usage.
- 24/7 Monitoring: Infrared night vision guarantees reliable surveillance even in total darkness, with an effective range of 30 meters.
- Enhanced Image Clarity: DWDR technology improves footage quality in environments with challenging lighting conditions.
- Easy Installation: PoE simplifies installation by reducing the need for additional power cables, saving time and costs.
- Sound Monitoring: The built-in microphone enhances security by capturing audio for added insight.
- Flexible Integration: ONVIF compatibility allows effortless scalability and integration with other systems.
- Convenient Remote Access: Enables users to view live footage remotely, ensuring peace of mind and flexibility.
The Latest Price of Avtech DGM5203GCAT AI-Based 5MP Dome IP Camera in Bangladesh
The current price of the Avtech DGM5203GCAT AI-based 5MP Dome IP Camera in Bangladesh is 17,000৳. Prices are subject to change based on market demand, import costs, and availability.
You can purchase the Avtech DGM5203GCAT AI-Based 5MP Dome IP Camera, proudly 100% made in Taiwan, from our website or visit one of our showrooms to get the best deals. With a 2-year official warranty, this camera is the ideal choice for reliable and high-quality surveillance. Contact us today for updated pricing and exclusive offers!
Add a review
Related Products
AVTECH DGM3102SCT AI-based 3MP H.265 IR Bullet IP Camera
Compression: H.265 / H.264
Image Sensor: 1/2.7” SONY Starlight CMOS
lens: f2.8 mm / F1.6
Video Resolution: 2304 ×1296P
Microphone: YES Built-in
Effective Distance: UP to 30 Miters
AVTECH DGM3202SCT AI-based 3MP H.265 IR Dome IP Camera
Compression: H.265 / H.264
Image Sensor: 1/2.7” SONY Starlight CMOS
lens: f2.8 mm / F1.6
Video Resolution: 2304 ×1296P
Microphone: YES Built-in
Effective Distance: UP to 30 Miters

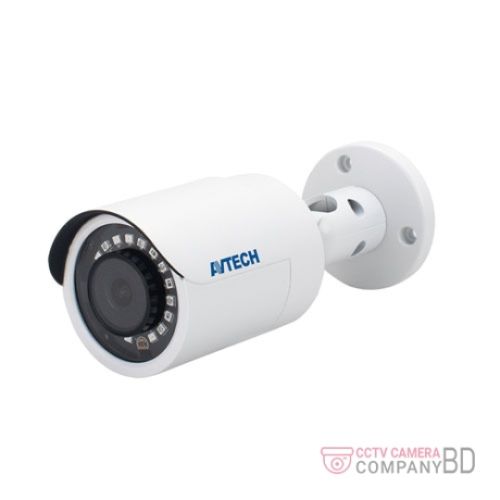

AVTECH DGM5103GCAT AI-based 5MP Bullet IP Camera
