AVTECH DGM5546SVAT AI-based 5MP H.265 IR Bullet IP Camera
Compression: H265 / H.264
Image Sensor: 1/2.8” SONY CMOS
lens: f2.8 ~ 12mm / F1.6 ~ F2.2
Video Resolution: 2560 x 1944 (5MP)
Microphone: YES Built-in
Effective Distance: Up to 50 meters
MicroSD: YES (up to 256GB) Supported
AVTECH DGM5546SVAT Datasheet and Specifications
| Device | |
|---|---|
| Image Sensor | 1/2.8" SONY CMOS |
| Max. Resolution | 2560x1944 |
| Lens | f2.8-12mm/F1.6-F2.2 |
| Viewing Angle | Tele 40° - Wide 117° (Diagonal) |
| Min Illumination | 0.001 Lux (IR LED off), 0 Lux (IR LED on) |
| Shutter Speed | AUTO, 1/25s~1/100000s |
| IR LED | 20 units |
| IR Effective Distance | Up to 50 meters |
| Day/Night | YES |
| WDR Mode | YES (120dB) |
| RTC (real-time clock) | YES |
| MicroSD Card Slot | YES (up to 256GB) |
| Video | |
| Compression | H.265 / H.264 |
| Video Resolution | Main Stream: 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P Sub Stream: D1 / VGA / 640x360 / 480x360 / CIF |
| Frame Rate | 5MP @ 25FPS |
| Video Profile | High profile / Main profile / Base profile |
| Multiple Video Streaming | 2 streams |
| Bitrate Control | 32Kbps - 8Mbps, VBR/CBR |
| Image Enhancement | WDR/BLC/HLC/2D DNR/3D DNR/AWB/MWB/AGC |
| Day/Night Switch | Auto / Color / (B/W)/Timing |
| Forced Anti-flicker | YES |
| Defog | YES |
| White Balance | Auto/Manual |
| Image Orientation | Rotate/Mirror |
| Privacy Mask | YES |
| Text Overlay | YES |
| OSD Title | Location / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported |
| Audio | |
| Microphone built-in | YES |
| Line out | YES |
| Encoding | G.711-u/G.711-a |
| Audio Adjustment | YES |
| Alarm & Event | |
| Alarm in | YES |
| Alarm out | YES |
| Detection Mode | Motion/Human/Vehicle / Alarm Detection |
| Detection Schedule | YES |
| Motion Detection Area | 1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18 |
| Human / Vehicle Detection Alert | Audio alert with customized mp3 audio file(s) |
| Storage | |
| On-Board Storage | Built-in memory card slot, supports microSD/SDHC/SDXC card up to 256GB |
| Overwrite | YES |
| Maximum Recording Time / per File | 1, 2, 3, 5, 10, 20 & 30 minutes configurable |
| Recording Schedule | YES |
| Network | |
| LAN Port | RJ45 connector x 1 / 4KV lightning-proof |
| LAN Speed | 100Mbps Based-T Ethernet |
| Supported Protocols | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS/RTMP |
| ONVIF Compatible | Onvif 17.06 compatible |
| Number of Online Users | 6 |
| Remote Access | Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
| General | |
| Web Interface Language | English, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean |
| Operating Temperature | -30°C ~ 60°C |
| Operating Humidity | 10%-90%RH |
| POE | IEEE 802.3af |
| Power Source (±10%) | PoE / DC12V |
| Power Consumption (±10%) | < 8 W |
| Net Weight (g) | 1063.5 |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Optional Bracket / Junction Box | AVA126-WHKT / AVA145-WHKT / AVM552C-HBKT |
| Minimum Web Browsing Requirements | |
| • Intel core i3 or higher, or equivalent AMD • 2GB RAM • AGP graphics card, Direct Draw, 32MB RAM • Windows 10, Windows 8, Windows 7, DirectX 9.0 or later • Internet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome |
|

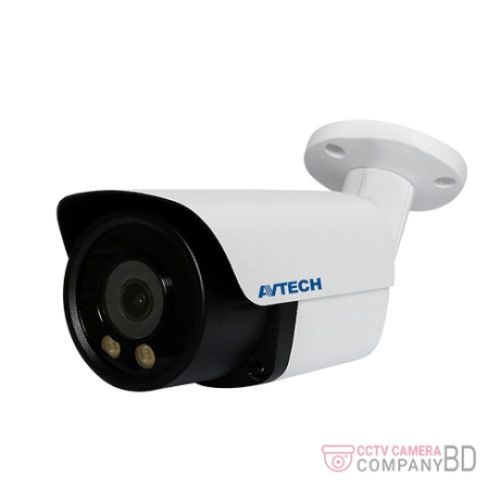

AVTECH DGM5546SVAT AI-Based 5MP IR Bullet IP Camera
The AVTECH DGM5546SVAT AI-Based 5MP IR Bullet IP Camera is a highly advanced surveillance device built for reliable performance and robust security. With a motorized lens, AI-based human/vehicle detection, and exceptional night vision, this camera is engineered to deliver top-notch image quality and precision. Its vandal-resistant metal casing and extended feature set make it a perfect choice for demanding environments.
Key Features
- 5MP AI-Powered Surveillance: Delivers clear and high-resolution video footage with AI-based human and vehicle detection to minimize false alarms.
- Starlight Visibility: Ensures vivid color images in low-light conditions, offering superior night-time surveillance.
- Motorized Lens (f2.8 ~ 12mm): Provides adjustable zoom for flexible monitoring based on specific requirements.
- Wide Dynamic Range (WDR): Increases image clarity by improving visibility in overexposed or dark areas.
- Night Vision: IR LEDs provide an effective range of up to 50 meters, ensuring clear black-and-white footage in complete darkness.
- MicroSD Card Support (Up to 256GB): Enables local video storage, providing a backup in case of network interruptions.
- External Alarm I/O: Allows connection to external devices for advanced integration and alarm triggers.
-
Audio Recording and Broadcasting:
- Built-in microphone for audio capture.
- Line-out support for audio broadcasting, enhancing situational awareness.
- ONVIF Standard Compliance: Simplifies integration with third-party devices for seamless system expansion.
- PoE Support: Combines power and data over a single cable, streamlining installation and reducing costs.
- IK10 Vandal-Resistant Casing: Rugged metal housing to withstand tampering and ensure durability.
- Remote Surveillance: Compatible with Internet Explorer (v6+), Microsoft Edge, and Google Chrome for versatile monitoring.
Benefits
- AI Efficiency: Eliminates unnecessary alerts by accurately distinguishing between human and vehicle activities.
- Scalable System Design: ONVIF compatibility and PoE features make it suitable for small to large-scale setups.
- Durable Build: IK10-rated metal casing ensures protection against vandalism and tough conditions.
- Exceptional Night Vision: IR range of up to 50 meters provides reliable performance in low-light or no-light environments.
- Enhanced Monitoring: Motorized lens and WDR technology allow detailed and clear surveillance in diverse scenarios.
- Convenient Remote Access: Real-time monitoring through multiple browsers for comprehensive security management.
Why Choose the AVTECH DGM5546SVAT?
The DGM5546SVAT camera combines advanced AI features, robust build quality, and unmatched performance to deliver a comprehensive security solution. Whether for residential, commercial, or industrial applications, this camera meets and exceeds expectations.
Latest Price of AVTECH DGM5546SVAT AI-Based 5MP IR Bullet IP Camera in Bangladesh
The current price of the AVTECH DGM5546SVAT AI-Based 5MP IR Bullet IP Camera is 33,500৳. Prices may vary depending on market conditions and availability.
Equip your property with the AVTECH DGM5546SVAT AI-Based 5MP IR Bullet IP Camera for unparalleled security. With a 2-year official warranty, this camera is an excellent investment in your safety. Visit our showroom or website to place your order or contact us for the latest offers!
