- Camera
- Image Sensor1/3" progressive scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100, 000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°
- Lens
-
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
- Lens MountM12
- FocusFixed
- ApertureF2.0
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Iris TypeFixed
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
-
Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email
- General
-
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- MaterialBase: metal, cover: plastic
- DimensionØ111 mm × 82.4 mm (Ø 4.4" × 3.2")
- Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
- WeightApprox. 360 g (0.8 lb.)
- With Package WeightApprox. 560 g (1.2 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-banding, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Description
Hikvision DS-2CD1143G0-I 4MP Fixed Dome IP Camera
The Hikvision DS-2CD1143G0-I is a high-performance 4MP fixed dome network camera offering excellent image quality with a 2560 × 1440 resolution, designed for both indoor and outdoor surveillance. Its 1/3" progressive scan CMOS sensor ensures detailed visuals, even under challenging lighting conditions.
With a minimum illumination of 0.01 lux in color mode (with AGC on) and effectively zero lux when night-vision IR is active, the camera captures usable video in very low light. It uses an IR cut filter for day/night switching and offers a smart supplementary IR light, giving visibility up to 30 meters at night.
Lens options include fixed focal lengths of 2.8 mm and 4 mm, offering wide fields of view (98° horizontal with 2.8 mm, ~79° with 4 mm) so you can cover broad areas. The aperture is F2.0, and shutter speeds range from 1/3 second up to 1/100,000 second, enabling good performance in both bright and low light.
The camera supports advanced imaging features such as 120 dB WDR (Wide Dynamic Range) for clear images even in scenes with strong backlighting, 3D noise reduction (3D-DNR) for cleaner low-light footage, and digital enhancements like BLC (Back Light Compensation), saturation, sharpness, contrast adjustments, etc.
Built for durability, it carries an IP67 rating for weather resistance and IK10 for vandal protection, making it suitable for harsh outdoor conditions. Powering options include 12 VDC and Power over Ethernet (PoE, IEEE 802.3af) for easier installation. Physical size is about Ø111 mm × 82.4 mm, and it weighs around 360-410 grams depending on the variant.
What is the Price of Hikvision DS-2CD1143G0-I 4MP Fixed Dome IP Camera in Bangladesh?
The latest price of Hikvision DS-2CD1143G0-I 4MP Fixed Dome IP Camera in Bangladesh is ৳4,700.00. You can buy the Hikvision DS-2CD1143G0-I 4MP Fixed Dome IP Camera at the best price from our website: cctvcameracompany.com.bd or visit any of our showrooms.
Add a review
Related Products
AVTECH DGM3102SCT AI-based 3MP H.265 IR Bullet IP Camera
Compression: H.265 / H.264
Image Sensor: 1/2.7” SONY Starlight CMOS
lens: f2.8 mm / F1.6
Video Resolution: 2304 ×1296P
Microphone: YES Built-in
Effective Distance: UP to 30 Miters
AVTECH DGM3202SCT AI-based 3MP H.265 IR Dome IP Camera
Compression: H.265 / H.264
Image Sensor: 1/2.7” SONY Starlight CMOS
lens: f2.8 mm / F1.6
Video Resolution: 2304 ×1296P
Microphone: YES Built-in
Effective Distance: UP to 30 Miters

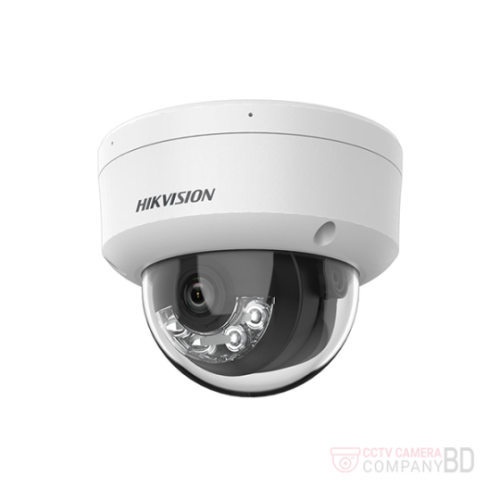

Hikvision DS-2CD1143G2-LIU 4 MP Smart Hybrid Light Fixed Dome IP Camera
Model: DS-2CD1143G2-LIU
Image Sensor: 1/3" Progressive Scan CMOS
Lens: Fixed focal lens, 2.8 and 4 mm optional
Resolution: 2560 × 1440 4MP
Built-in microphone for real-time audio security
Support Human and Vehicle Detection
IR Distance: Up to 30 Meters
Water and dust resistant (IP67)

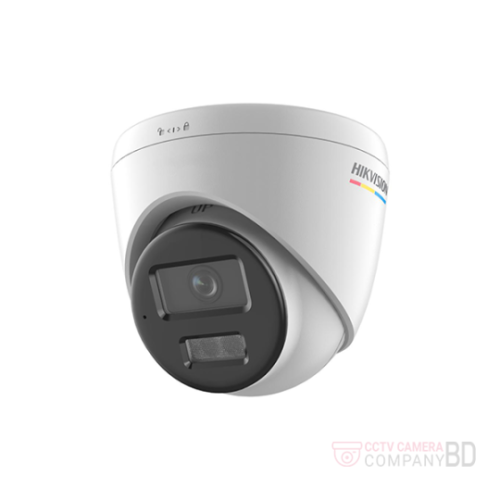

Hikvision DS-2CD1327G2H-LIU 2MP ColorVu with Smart Hybrid Light Fixed Turret IP Camera
