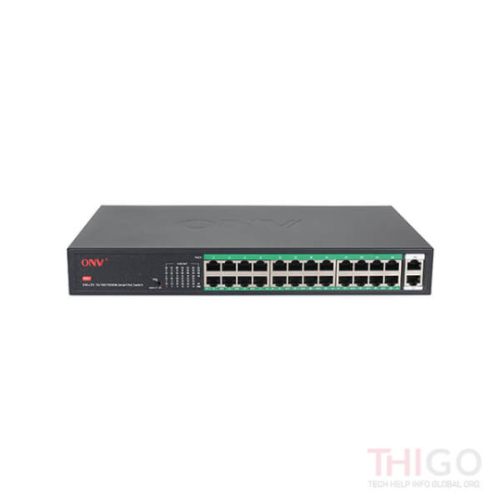

ONV-H1024PLS 24 Port Unmanaged PoE+ with 2 Port Gigabit Uplink Switch
Model: ONV-H1024PLSL
Interface: 24*10/100Base-T uplink RJ45 ports (Data/Power)
Interface: 2*10/100/1000Base-T uplink RJ45 ports (Data)
Switching Capacity: 14.8Gbps (Non-blocking)
Packet Forwarding Rate:6.55Mpps
Chip Parameter: MAC: 16K, Buffer Memory: 4M, Jumbo Frame: 10k
PoE Budget: 250 Watts, Max Power Per Port: 30W, PoE+
Port-1-24 can support 250m Transmission.
Port 1-24 Support af/at PoE Standard
| Model | ONV-H1024PLS |
|---|---|
| Interface Characteristics | |
| Fixed Port | 24*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-24 can support 10/100Base-TX and port 25-26 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Functional Switch | Function switch (100m/250m) default is off When 100m turned on, the default is 100 meters transmission. When 250m turned on, port 17-24 support 10M/250 meters transmission. |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| Switching Capacity | 14.8Gbps (Non-blocking) |
| Forwarding Rate@64byte | 6.55Mpps |
| MAC | 16K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (Green), Network: Link(Green), PoE: PoE (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1-24 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR / Input Voltage | 250W (AC100-240V) |
| Power Consumption | Standby <20W, Full load <250W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 330*204*44mm |
| Net /Gross Weight | 1.85kg / 2.4kg |
| Installation | Desktop, wall mounted, rack mounted |
| Certification & Warranty | |
| Lightning Protection | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
ONV H1024PLS 24 Port PoE Switch – Full Specification & Details
If you are looking for the ONV H1024PLS 24 Port PoE Switch price in Bangladesh, this model is a powerful and reliable solution for CCTV surveillance systems, IP camera networks, access control projects, and enterprise LAN deployments.
The ONV-H1024PLS is a 24-port PoE+ Ethernet switch equipped with 2 Gigabit uplink ports, high PoE power capacity, and long-distance transmission support—making it ideal for professional installations across Bangladesh.
24 Port PoE+ Power for CCTV & Network Devices
The ONV-H1024PLS features 24× 10/100Base-TX PoE ports (Port 1–24) that provide both data
and power through a single Ethernet cable.
Each PoE port supports up to 30W PoE+ output, using
1/2(+) and 3/6(–) power supply pins.
With a total PoE power budget of 250W, the switch can easily power multiple high-power IP cameras, IR cameras, and PoE-enabled devices simultaneously—an important factor when comparing the ONV H1024PLS 24 Port PoE Switch price in BD.
Why Choose ONV-H1024PLS in Bangladesh?
When evaluating the ONV H1024PLS 24 Port PoE
Switch price in Bangladesh, this model stands out for its:
High 250W PoE power budget,
Long-distance
250m CCTV transmission,
Dual
Gigabit uplink ports,
Industrial-grade protection and certifications
What is the Price of ONV H1024PLS 24 Port PoE Switch in Bangladesh?
The latest price of ONV H1024PLS 24 Port PoE Switch in Bangladesh is 16,500৳. You can buy the ONV-H1024PLS 24 Port PoE+ Switch at best price from our website or visit any of our showrooms.
