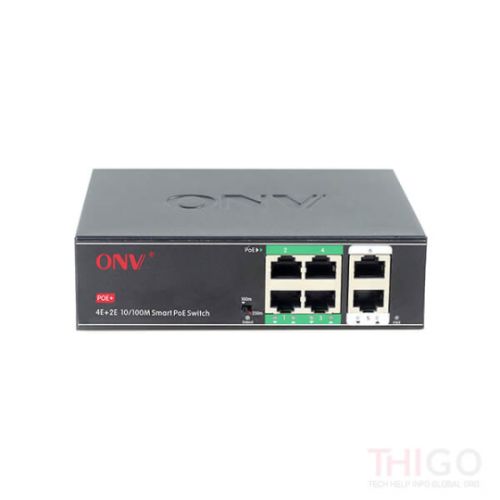

ONV H1064PSD 4 Port Unmanaged PoE+ with 2 Port Uplink Switch
Model: ONV-H1064PSD
Interface: 4*10/100Base-T uplink RJ45 ports (Data/Power)
Interface: 2*10/100Base-T uplink RJ45 ports (Data)
Switching Capacity: 1.6Gbps (Non-blocking)
Packet Forwarding Rate: 0.89Mpps
Chip Parameter: MAC: 1K, Buffer Memory: 768K, Jumbo Frame: 1536 Byte
PoE Budget: 65 Watts, Max Power Per Port: 30W, PoE+
Port-1-4 can support 250m Transmission.
Port 1-4 Support af/at PoE Standard
| Model | ONV-H1064PSD |
|---|---|
| Interface Characteristics | |
| Fixed Port | 4*10/100Base-TX PoE ports (Data /Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
| Ethernet Port | Port 1- 6/ 1-10 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) |
| Function Switch | E file: long-distance and VLAN isolation (Default-OFF, enable-ON), when opening, port 1-4/ 1-8 support 10M/250m transmission |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x |
| Forwarding Mode | Store and forward (Full wire speed) |
| Switching Capacity | 1.6Gbps |
| Forwarding Rate@64byte | 0.89Mpps |
| MAC | 1K |
| Buffer Memory | 768K |
| Jumbo Frame | 1536byte |
| LED Indicator | Power: PWR (Green), Function switch: 100m/ 250m (Green), Network/ PoE: 1-6/ 1-10: (Green) |
| PoE& Power Supply | |
| PoE Port | Port 1 to 4 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR/ Input Voltage | 65W (AC100-240V) |
| Power Consumption | Standby < 3W, full load < 65W |
| Power Supply | Built-in power supply, AC100-240V 50-60Hz, 1.0A |
| Physical Parameter | |
| Operation Temp/ Humidity | -20~+55°C, 5%~90% RH non condensing |
| Storage Temp/ Humidity | -40~+80°C, 5%~95% RH non condensing |
| Dimension (L*W*H) | 142.5*115*40mm |
| Net /Gross Weight | 0.55kg/ 0.8kg |
| Installation | Desktop, Wall mount |
| Certification& Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
| Warranty | 1 year, lifelong maintenance. |
ONV H1064PSD 4 Port PoE Switch Price in Bangladesh – Full Specification & Details
If you are searching for the ONV H1064PSD 4 Port PoE Switch price in Bangladesh, this compact and efficient PoE switch is an excellent choice for small CCTV installations, IP cameras, access control systems, and basic network setups.
The ONV-H1064PSD is a 4-port PoE+ Ethernet switch with 2 uplink ports, long-distance transmission support, and VLAN isolation functionality, making it suitable for both home and small commercial surveillance networks.
4 Port PoE+ Output for CCTV & Network Devices
The ONV-H1064PSD comes with 4× 10/100Base-TX PoE ports (Port 1–4) that deliver both power and data over a single Ethernet cable.
Each PoE port supports up to 30W PoE+ power, using 1/2(+) and 3/6(–) power supply pins.
Uplink Ports for Stable Network Connectivity
The switch includes 2× 10/100Base-TX uplink RJ45 ports (Data only), allowing stable
connection to NVRs, routers, or core switches.
All ports support auto-sensing, full/half duplex, and MDI/MDI-X
self-adaptation for easy installation.
Long-Distance Transmission & VLAN Isolation Mode
The ONV-H1064PSD features an E-file function switch for long-distance transmission and VLAN isolation:
-
Default: OFF
-
When enabled: Ports 1–4 (or 1–8 depending on configuration) support 10Mbps transmission up to 250 meters
This feature is especially useful for long-distance CCTV camera deployment, reducing network interference and broadcast storms.
What is the Price of ONV H1064PSD 4 Port PoE Switch in Bangladesh?
The latest price of ONV H1064PSD 4 Port PoE Switch in Bangladesh is 2,950৳. You can buy the ONV H1064PSD 4 Port PoE+ Switch at best price from our website or visit any of our showrooms.
