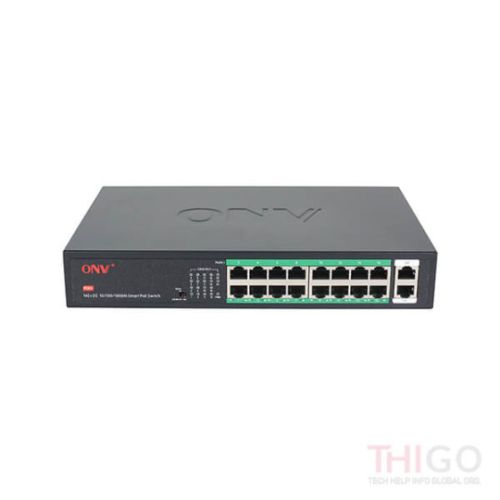

ONV H3016PS 16 Port Gigabit PoE+ With 2 Port Gigabit Uplink
16,500.00
৳
18,200.00
৳
9.34%
off
Model: ONV-H3016PS
Interface: 16*10/100/1000Base-T PoE ports (Data/Power)
Interface: 2*10/100/1000Base-T uplink RJ45 ports (Data)
Switching Capacity: 36Gbps (non-blocking)
Packet Forwarding Rate: 26.78Mpps
Chip Parameter: MAC: 2K, Buffer Memory: 2M, Jumbo Frame: 9.2k
PoE Budget: 250 Watts, Max Power Per Port: 30W, PoE+
Port 1-16 Support af/at PoE Standard
Share:
| Model | ONV-H3016PS |
|---|---|
| Interface Characteristics | |
| Fixed Port | 16*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-16 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T: Cat3, 4, 5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and forward (Full wire speed) |
| Switching Capacity | 36Gbps (non-blocking) |
| Forwarding Rate@64byte | 26.78Mpps |
| MAC | 2K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2k |
| LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) |
| PoE& Power Supply | |
| PoE Port | Port 1-16 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, PoE+ |
| Total PWR/ Input Voltage | 250W/ (AC100-240V) |
| Power Consumption | Standby<13W, full load<250W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz, 4.1A |
| Physical Parameter | |
| Operation Temp/ Humidity | -20~+55°C, 5%~90% RH non condensing |
| Storage Temp/ Humidity | -40~+75°C, 5%~95% RH non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | 1.6kg/ 2.0kg |
| Installation | Desktop, 1U/19" cabinet |
| Certification& Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS |
| Warranty | 1 year, lifelong maintenance. |
What is the Price of ONV H3016PS 8 Port PoE Switch in Bangladesh?
The latest price of ONV-H3016PS 16 Port PoE Switch in Bangladesh is 16,500৳. You can buy the ONV-H3016PS 16 Port PoE+ Switch at best price from our website or visit any of our showrooms.
