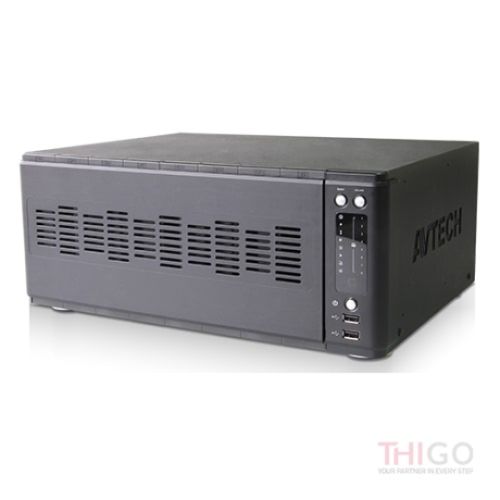

AVTECH AVZ8136 8 Bay H.264 Pentabrid 36 Channel XVR

AVTECH AVZ8136 8 Bay H.264 Pentabrid 36 Channel XVR

0.00 ৳ 1.00 ৳
100.00% off

Type : 36 Channel XVR
Compression : H.264
Video Signal : IP / TVI / CVI / Analog HD / 960H
Video Input : 32 channels (TVI /CVI / Analog HD / 960H) + 4 IP channels
HDD : 14TB HDD x 8
Video Output : BNC, VGA And Two HDMI

  • Brand: Avtech
(1)
Share:
▼ Video
Video System NTSC / PAL (auto detection)
Video Compression Format H.264
Video Signal IP / TVI / CVI / Analog HD / 960H
Video Input 32 quadbrid channels (TVI /CVI / Analog HD / 960H) + 4 IP channels
Video Input Interface
Analog Mode Composite video signal 1 Vp-p 75Ω BNC
IP Mode Ethernet, 10/100 Base-T
Video Output
BNC YES (Spot Monitor supported)
VGA YES (1080P display / Spot Monitor supported)
HDMI HDMI-1 (4K2K display) / HDMI-2 (1080P display / Spot Monitor supported)
Video Resolution
Analog Mode 1080P / 720P / QHD / 960H / Frame / Field / CIF
IP Mode 1920 x 1080 / 1280 x 720/ 640 x 480 / 320 x 240
▼ Record & Backup
Max. Recording Rate
Analog Mode Up to 384 IPS @ 1920 x 1080 (32 channels)
IP Mode UP to 60 IPS @ 2592 x 1944 (4 channels)
UP to 120 IPS @ 1920 x 1080 (4 channels)
Recording Mode Manual / Timer / Motion / Alarm / Remote
Pre-alarm Recording YES
Playback Channel 16CH
Quick Search Time / Motion / Alarm search mode
Backup Device USB 3.0 drive / Network
Regular Backup YES (USB hard drive or FTP)
▼ Audio
Audio Input 16
Audio Output 2 (Mono)
▼ External I/O
RS485 YES
Alarm Input 8
Alarm Output 1
Alarm Scenario YES
▼ General
Hard Disk Storage 14TB SATA HDD x 8
SATA Interface YES
Image Quality Setting SUPER BEST / BEST / HIGH / NORMAL
USB Mouse Control YES
Motion Detection Area 16 x 12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push Video / Push Status / FTP / E-Mail
Event Pop-up & Preview YES
Scenario Setup YES
Picture Zoom 2X digital zoom
PTZ Control YES
Key Lock (Password Protection) YES
User Level 4 user levels for different access privilege
Video Loss Detection YES
Camera Title Supports up to 25 letters
Video Adjustable Hue / Saturation / Contrast / Brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving YES
Power Source (±10%) DC12V / 6A
Operating Temperature 0ºC ~ 40ºC (32ºF ~104ºF)
Operating Humidity 10% ~ 85%
Dimensions (mm)*** 358 x 267 x 152
Net Weight (kg) 5.9 kg
▼ Network
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP and DDNS
▼ Remote Surveillance from PC
Compatible Operating System Windows & MAC
Compatible Program
Web Browser: Windows Edge, Internet Explorer (Windows 8 and later version) Safari, Google Chrome & Mozilla Firefox (Windows Vista and later version)
CMS Lite: 32CH central management software for Windows OS
Max. online users 36
Web Transmitting Compression Format H.264
Remote Live Display 9CH (Selectable)
Network Live Audio YES
Remote Event Download & Playback YES
▼ Mobile Surveillance
App EagleEyes
Compatible Devices iOS & Android devices
Push Video YES (9 channels)
Push Status YES
▼ Others
EaZy Networking YES
Alarm Scenario Setup YES
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (HDMI-2, VGA & Composite Selectable)
IVA YES (CH1 ~ CH4 in analog mode)
DCCS Support YES
AVTECH Free DDNS service YES
Privacy Mask YES
Multiplex Operation Live display / record / playback / backup / network operations
System Recovery System auto recovery after power failure
Optional Peripherals HDMI Matrix (HDM02) / USB Joystick (AVX102)
Certification CE
