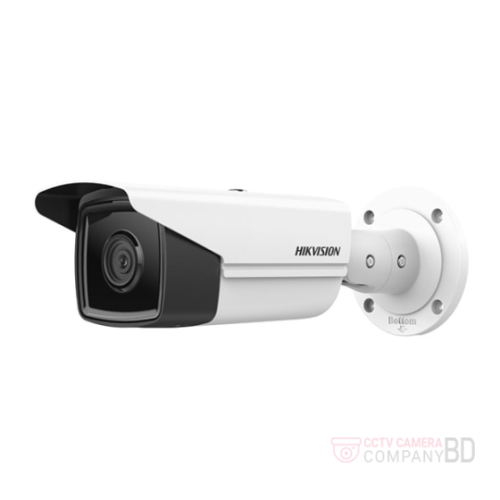

Hikvision DS-2CD2T43G2-4I 4 MP AcuSense Fixed Bullet Network Camera
Model: DS-2CD2T43G2-4I
Image Sensor: 1/3" Progressive Scan CMOS
Lens: Fixed focal lens, 2.8,4 and 6 mm optional
Resolution: 2688 × 1520 2MP
IR Distance: Up to 80 Meters
Focus on human and vehicle targets
Water and dust resistant (IP67)
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter Time1/3 s to 1/100,000 s
- Day & NightICR Cut
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
-
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
-
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12 m
- Illuminator
- Supplement Light TypeIR
-
Supplement Light Range
-2I: up to 60 m
-4I: up to 80 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
-
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)Yes
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in microSD, up to 512 GB
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event
Line crossing detection, intrusion detection
Supports human and vehicle targets classification
Face detection
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, sned email
- General
-
Power
-2I:
12 VDC ± 25%, 0.71 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, 36 V to 57 V, 0.27 A to 0.17 A, max. 9.5 W
-4I:
12 VDC ± 25%, 1.0 A, amx. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
-
Material
Aluminum alloy body
Sun shield, IR cover: plastic
- DimensionØ105 × 299.7 mm (Ø4.1″ × 11.8″)
- Package Dimension386 × 156 × 155 mm (15.2" × 6.2" × 6.2")
- WeightApprox. 1070 g (2.4 lb.)
- With Package WeightApprox. 1589 g (3.5 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
Description
Hikvision DS-2CD2T43G2-4I 4 MP AcuSense IP Camera
The Hikvision DS-2CD2T43G2-4I is a powerful 4-megapixel fixed bullet network camera built for demanding outdoor surveillance. It features a 1/3″ progressive scan CMOS sensor delivering a resolution of 2688 × 1520, capturing sharp, high-detail video. In low light, it achieves a minimum illumination of 0.005 Lux at F1.6 (with AGC on), and switches to full clarity with IR in darkness.
This model is designed to perform well under challenging lighting conditions, thanks to 120 dB wide dynamic range (WDR), which ensures clear images even when there is strong backlight. Its IR night vision extends up to 80 meters (4I version), so you can count on solid visibility at night.
It uses efficient video compression with support for H.265+ / H.265 / H.264+ / H.264 / MJPEG, which helps reduce bandwidth usage and storage needs without sacrificing image quality. For streaming flexibility, it offers multiple streams (main, sub, third) and bit-rates from low to high depending on configuration.
The DS-2CD2T43G2-4I also supports intelligent detection: human & vehicle classification to reduce false alarms, motion detection, line crossing, and intrusion detection.
Built tough for outdoor use, it has a IP67-rated weatherproof housing, and hardware that withstands harsh environments. The lens options (2.8 mm, 4 mm, 6 mm) give you flexibility depending on your required field of view: e.g. the 4 mm model gives a horizontal FOV of around 84°, vertical ~45°, and diagonal ~100°.
Power is supplied via 12 VDC or PoE (802.3af, Class 3 depending on version). The camera also supports microSD storage (up to 512 GB) for local recording.
What is the Price of Hikvision DS-2CD2T43G2-4I 4 MP AcuSense IP Camera Price In Bangladesh?
The latest price of Hikvision DS-2CD2T43G2-4I 4 MP AcuSense IP Camera in Bangladesh is ৳7,800.00. You can buy the Hikvision DS-2CD2T43G2-4I 4 MP AcuSense IP Camera at the best price from our website: CCTV Camera Company BD, or visit any of our showrooms.
